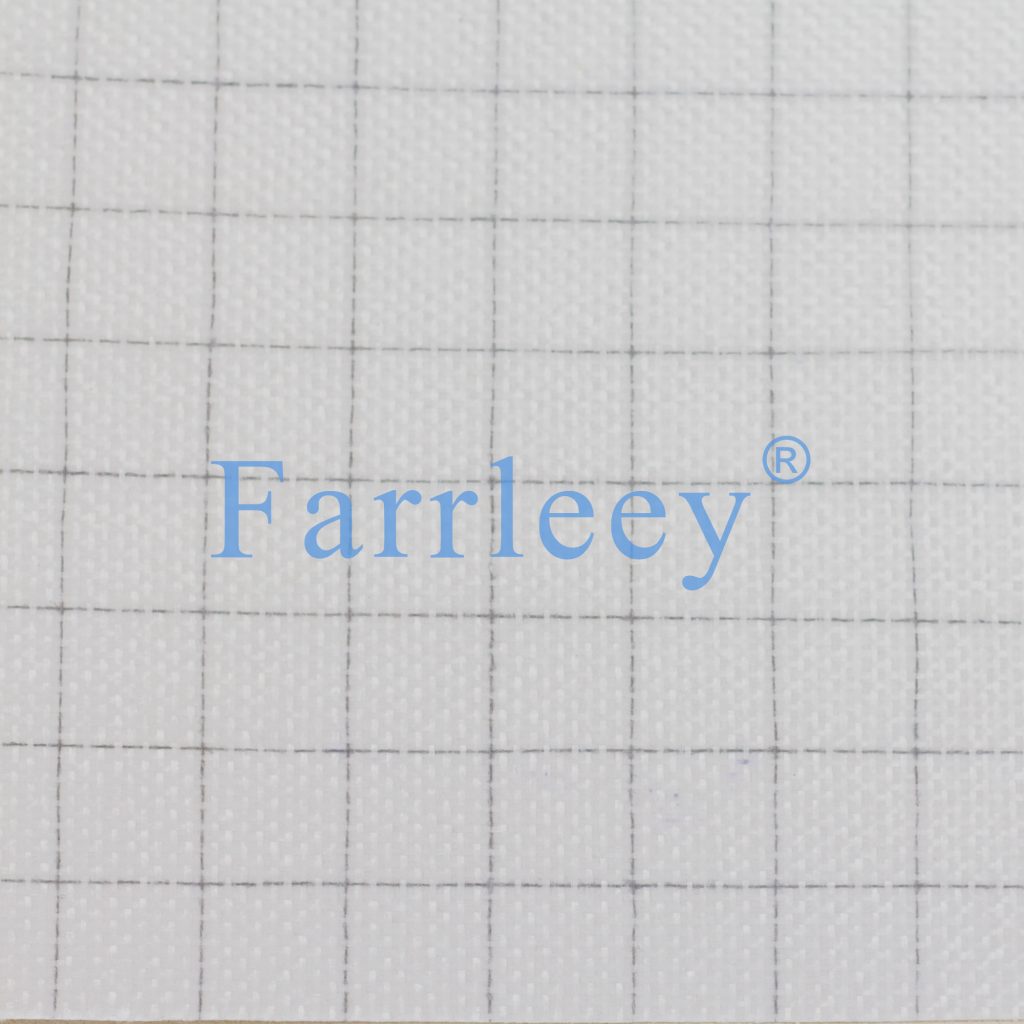

Needle-Punched Pleatable Filter Media

PRODUCTS

Needle-Punched Pleatable Filter Media

High-strength needle-punched filter media designed for pleated dust collection cartridges, providing reliable filtration, durability, and stable airflow performance.

Basis Weight

120–260 g/m²

Thickness

0.35–0.70 mm

Air Permeability

180–450 L/m²/s

Continuous Temperature

≤ 130°C

Max Roll Width

2,200 mm

Finishes

5 options

Overview

Needle-Punched Pleatable Filter Media is engineered for industrial dust collection and air filtration applications where high mechanical strength and stable filtration performance are required. The needle-punched construction provides excellent dimensional stability, durability, and pleating characteristics for cartridge filter manufacturing.

Key Features

Control Item	Tolerance	How It Is Verified
Basis Weight	Controlled to specification	Production measurement
Air Permeability	Controlled to specification	Calibrated permeability testing
Thickness	Controlled to specification	Calibrated thickness measurement
Roll Consistency	Consistent throughout roll	Production monitoring
Material Quality	Consistent batch to batch	Quality inspection and records

Applications

Dust Collection Cartridges

Needle-punched pleatable filter media is designed for dust collection cartridges, providing effective particle capture, stable airflow, and durable performance in industrial dust filtration systems.

Industrial Dust Filtration

Suitable for industrial environments where airborne dust and particulate matter must be controlled. The media supports reliable filtration performance in manufacturing, processing, and material-handling applications.

Cement & Mineral Processing

Pleatable filter media can be used in cement, aggregate, and mineral-processing operations to capture fine dust generated during crushing, grinding, conveying, and other production processes.

Woodworking & Powder Processing

Designed for applications that generate fine airborne particles, including woodworking, powder handling, and other industrial processes. Its pleatable structure provides high filtration area while maintaining stable airflow performance.

Technical Specification

Property	Typical Value	Test Standard
Basis Weight	250–600 g/m²	ISO 9073-1
Thickness	1.0–2.5 mm	ISO 9073-2
Air Permeability @ 200 Pa	100–300 L/m²/s	ISO 9237
Tensile Strength MD / CD	Product-specific	ISO 9073-3
Elongation MD / CD	Product-specific	ISO 9073-3
Continuous Operating Temperature	≤130°C	Internal Method
Short-Term Peak Temperature	Up to 150°C	Internal Method
Maximum Roll Width	2,200 mm	—
Surface Finish	Standard / PTFE / Antistatic / FR	—
Color	White / Black / Customized	—

From Mesh to Finished Filters

FARRLEEY Filtration combines filter media expertise with practical filtration component manufacturing experience, helping us evaluate nylon filter mesh not only by mesh size and material properties, but also by filtration accuracy, flow performance, mechanical strength and converting requirements. This practical experience allows us to better support filter manufacturers and OEM partners with mesh selection, cutting, forming, assembly and customized filter component development.

Available Supply Forms

Filter Media Rolls

For filter manufacturers with their own pleating and converting capabilities.

Pleated Media & Pleat Packs

Available according to required pleat height, width and converting specifications. Customized roll width, roll length and pleat dimensions are available upon request.

Frequently Asked Questions

What is Needle-Punched Pleatable Filter Media?

Needle-Punched Pleatable Filter Media is a high-strength filtration material designed for pleated dust collection cartridges. It provides reliable particle filtration, mechanical durability, and stable airflow performance.

What applications is Needle-Punched Pleatable Filter Media suitable for?

It is suitable for industrial dust collection, dust collector cartridges, cement & construction, manufacturing, power generation, and industrial processing applications.

What are the main advantages of Needle-Punched Pleatable Filter Media?

Key advantages include high mechanical strength, stable pleating, reliable airflow, durable construction, and consistent filtration performance.

Can Nylon Filter Mesh be used for industrial filtration?

Yes. It can be used in industrial filtration systems, strainers, screens, filter elements, and other applications requiring controlled particle separation and durable mesh construction.

Can FARRLEEY provide customized Nylon Filter Mesh solutions?

Yes. FARRLEEY Filtration can evaluate mesh material, mesh size, filtration requirements, dimensions, and converting requirements to support customized filtration solutions for specific applications.
